Why generation of media preview gets broken when Open tags of Graph are missing

Understanding exactly why generation of media preview gets broken when Open tags of Graph are missing starts inside the HTML document head block. Social media scrapers require explicit structured data protocols to render feed cards. Without predefined meta tags targeting specific properties, social bots execute arbitrary scraping routines. They pull unformatted strings and random image elements directly from the DOM tree.

The protocol strictly defines how a webpage maps to a graph object. Network crawlers including facebookexternalhit/1.1 expect exact key-value pairs assigned to specific content attributes. Parsing logic fails completely if these nodes are missing from the initial HTTP 200 server response. The bot defaults to the native title node. It extracts the first readable text string it detects. Missing data outputs usually stem from an improperly configured CMS deployment.

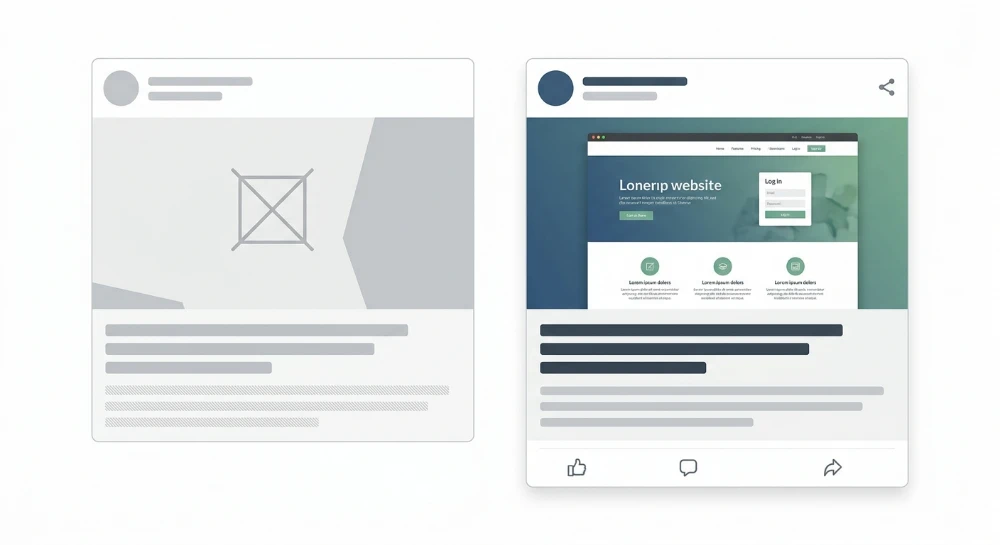

Visual structure controls interaction probability. Missing image parameters reduce link visibility across algorithmically sorted timelines. Posts displaying a raw URL string without an attached media card experience massive drops in engagement. Link sharing data indicates that pages lacking defined graph image assets suffer up to a 70 percent decrease in CTR compared to fully configured payload deliveries. This parsing failure directly suppresses organic social referrals. Traffic flatlines. Overall ROI on content distribution drops.

Core Open Graph and Twitter card syntax requirements

Structural placement dictates parsing success. Network parsers scan the static HTML document head element before evaluating payload body content. Injecting protocol attributes outside this specific node hierarchy invalidates the schema. Crawlers terminate metadata extraction operations immediately upon exiting the head sequence. Proper configuration demands absolute precision.

The protocol relies on exact property-content pairings. Standard deployment requires five baseline meta tags for valid payload delivery. Omission forces the bot into arbitrary fallback routines.

• og:type : Defines the functional category of the URL. Declare website for root domains and aggregate index pages. Switch to article for individual posts, publications, or discrete content assets.
• og:url : Establishes the canonical routing path. This exact string consolidates engagement metrics and prevents fragmentation across duplicate tracking parameters.
• og:title : Specifies the explicit headline displayed in the feed card. Truncation occurs if character limits are exceeded.
• og:description : Provides a contextual text summary positioned directly below the main title string.
• og:image : Designates the primary visual asset rendering within the timeline interface.

Twitter card syntax parity

Twitter maintains parallel but distinct syntax requirements. Its crawler defaults to standard Open Graph attributes when native tags are absent. Strict parity guarantees rendering stability across proprietary infrastructure. Mismatched nodes create visual inconsistencies.

Rendering an expansive media format requires one absolute directive. The twitter:card attribute must be explicitly declared with the value summary_large_image . Omitting this specific parameter degrades the presentation. The platform defaults to a standard, low-visibility thumbnail layout. CTR plummets.

Character encoding protocols

Encoding errors silently break meta tag logic. Unescaped special characters slice payload strings prematurely. A raw quotation mark inside an attribute terminates the property definition instantly. The crawler reads a fragmented string. The resulting feed card displays broken text or fails to render entirely.

Convert reserved characters into proper HTML entities. Apply strict server-side character escaping during content compilation to preserve string integrity. Replace raw ampersands with the & entity. Enforce " for double quotes and ' for single quotes. CMS databases frequently push raw text strings directly into the DOM tree. This breaks validation protocols. Sanitizing payload outputs ensures parsers extract the exact intended value.

Image asset specifications and MIME type constraints

Social feed parsers operate on strict visual bounding boxes. The media payload must conform to an exact resolution of 1200 x 630 pixels. This establishes the required 1.91:1 aspect ratio. Deviations from this mathematical baseline force algorithms to execute automatic center-cropping or scale the asset down to a low-impact thumbnail. Visual integrity degrades instantly.

Pathing architecture dictates extraction success. Absolute URLs are mandatory for all media declarations. Parsers execute requests outside standard browser routing contexts. They lack origin domain awareness. A relative path resolves to a null destination during server-side extraction. The crawler abandons the request. The feed generates a gray placeholder block.

Validating the exact URL structure prevents silent failures. An absolute path defines the explicit protocol, hostname, and directory tree.

Supported Content-Types

Parsers reject unrecognized media formats. Relying on unsupported extensions without fallback mechanisms blocks media generation across client environments. The designated image must resolve to a recognized MIME type.

Formats like SVG frequently fail validation during the metadata extraction phase. Crawlers lack the rendering engine overhead required to process vector math in milliseconds. Stick to established rasterized standards.

Auxiliary tag injection

Relying solely on the primary image tag introduces asynchronous parsing latency. The crawler initiates a network request to download the asset file header. It must read the header byte stream to determine dimensions before rendering the layout. This delays feed generation.

Injecting auxiliary metadata tags eliminates this computational overhead. Providing explicit dimensional and type data allows the parser to pre-allocate feed space instantly.

• og:image:width defines the horizontal pixel count. Set this parameter explicitly to 1200.
• og:image:height defines the vertical pixel count. Set this parameter explicitly to 630.
• og:image:type declares the exact MIME type prior to file execution. This prevents format mismatch errors during rendering.
• og:image:secure_url mandates media delivery over encrypted protocols. Platforms routinely reject non-secure HTTP image payloads.

Combining these structural tags builds a complete media definition matrix. The parser extracts the text string, validates the dimensional parameters, and executes the render protocol without waiting for the primary asset download to finish.

Social crawler request lifecycles and server responses

When a user drops a URL into a social composer interface, the platform backend initiates a synchronous GET request. The platform relies on headless scraper bots to fetch the target URL. These crawlers operate entirely outside standard browser environments. They do not execute rendering engines or wait for DOM lifecycle events. Their sole directive is to hit the server, extract the raw HTML document head, parse the metadata, and close the connection within milliseconds.

Identifying the exact network signatures of these crawlers allows network engineers to trace failed requests in server logs.

A successful interaction demands an immediate HTTP 200 response from the origin server. Scrapers lack the operational patience of human users. Any response that deviates from a clean HTTP 200 aborts the metadata extraction pipeline. The social platform will cache the failed attempt, generating a blank or corrupted preview card for all subsequent shares.

Architectural blockage points

Network security protocols frequently clash with automated crawler behavior. WAF configurations analyze incoming traffic using heuristics, IP reputation, and request header volume. Social crawlers dispatch requests from massive data center IP blocks. They often omit standard client headers like Accept-Language or specific viewport declarations. The WAF interprets this traffic pattern as an automated scraping attack or a basic botnet probe. It responds with an HTTP 403 Forbidden status.

The social crawler receives the HTTP 403, registers a hard failure, and drops the connection. The resulting preview card renders completely blank. Infrastructure teams must explicitly whitelist the ASN ranges or user-agent strings of major social networks at the edge layer.

Routing architecture heavily influences crawler persistence.

• Non-www to www domain resolution hops that force an initial HTTP 301.
• Trailing slash normalization rules executing secondary HTTP 301 redirects.
• Geo-IP routing intercepting the social crawler request and pushing it to a localized subdirectory.

Redirect chains severely dilute parsing authority. A single HTTP 301 might pass inspection if the target resolves instantly. Complex routing loops exhaust the internal hop limits programmed into social crawlers. The bot abandons the trace to conserve processing overhead. Every hop introduces latency, increasing the probability of a timeout failure before the HTML payload even begins transmission.

Media asset pathing introduces silent rendering failures. The server delivers a perfect HTTP 200 for the primary URL. The crawler parses the text tags flawlessly. It reads the string value injected into the image tag and initiates a secondary GET request to download the visual asset. The server returns an HTTP 404 Not Found on the media path. The crawler logs the asset as missing but retains the text metadata. The feed outputs a fractured, text-only node. This specific failure stems directly from relative URL paths breaking across staging and production environments, or CDN synchronization delays.

JavaScript rendering and SPA hydration failures

Modern CSR architectures prioritize rapid state changes and fluid user interactions but inherently break social scraper compatibility. A standard SPA delivers an empty container embedded within a bare HTML shell. The application logic, routing rules, and metadata injection execute on the client device after the initial document load completes.

Social network scrapers operate under rigid latency constraints. They request the URL, download the initial HTTP payload, parse the document head, and immediately terminate the connection. They do not execute external script bundles. They do not wait for API resolution or DOM hydration. If the required tags are absent from the static source code, the scraper extracts nothing. The bot logs an empty node. The resulting feed output defaults to the domain root configuration or returns a blank, unclickable card.

The bare shell dilemma

Architectural shifts are mandatory to resolve this rendering block. Generating the markup before transmission ensures the crawler receives a complete, parseable payload.

Implementing SSR and SSG

Moving the rendering workload to the server guarantees metadata availability. SSR executes the application logic per request, compiling the entire HTML document before pushing the HTTP response. SSG shifts this workload to the deployment phase, generating static files during the build process. Both approaches satisfy the crawler requirement for hardcoded tags.

Framework-specific implementations require explicit metadata routing logic at the server level.

• Next.js dictates the use of the next/head component. You inject this component at the page level, mapping server-fetched properties directly to the open graph structure before the document stream begins.
• Nuxt environments rely on the useHead() composable. This function defines reactive header properties during server execution, ensuring the framework serializes the output into the initial page response.
• React-helmet handles dynamic tag management in older React applications. Operating React-helmet exclusively on the client accomplishes nothing for social scrapers. It must run in tandem with a Node.js server using renderToString() to extract the helmet data and append it to the outgoing HTML template.

Edge interception via rendertron

Full architectural refactoring requires significant engineering resources. Dynamic pre-rendering provides a middleware alternative for monolithic SPA environments. Deploying Rendertron or a similar headless Chrome instance behind an edge firewall allows you to split incoming traffic based on user-agent strings.

The routing layer intercepts the incoming request. Standard traffic flows directly to the CDN to receive the lightweight CSR application. Scraper traffic routes instantly to the pre-rendering endpoint. The headless instance loads the URL, executes the application code, waits for network idle, and serializes the fully hydrated DOM into a static HTML document. Rendertron then returns this compiled markup to the bot.

This proxy layer introduces network latency. The headless instance must execute the entire rendering pipeline before responding. You must configure an aggressive caching tier for pre-rendered paths to prevent timeout failures during complex API fetches. Caching the serialized HTML at the edge ensures subsequent crawler requests resolve instantaneously, bypassing the headless browser overhead entirely.

Diagnostic tooling and scraper cache invalidation

Verifying the payload delivery requires intercepting the exact serialized markup that automated crawlers process. Webmasters frequently mistakenly rely on local browser inspection to validate tag deployment. The DOM visible in standard developer tools represents the post-hydration state. Social media parsers do not evaluate this state. You must inspect the raw server response using dedicated platform interfaces and command-line diagnostics.

Platform-Specific diagnostic interfaces

Each major social network maintains a proprietary validation endpoint. These tools execute a live fetch against the target URL, parse the available metadata, and return the interpreted payload. They expose syntax errors, missing asset dimensions, and server-level rejections.

The Facebook Sharing Debugger serves as the baseline diagnostic environment. It explicitly details the HTTP status code encountered during the fetch. If an aggressive WAF blocks the crawler, the tool flags the 403 Forbidden status immediately. The interface also highlights payload warnings, such as images exceeding the maximum 8MB file size limit or missing dimensions. Resolving these warnings prevents silent failures during organic user sharing.

LinkedIn Post Inspector operates with slightly different caching aggression. Content shared on LinkedIn persists in their infrastructure for up to seven days. Running the URL through the Post Inspector bypasses this TTL. The system retrieves the latest HTML document and updates the associated preview object globally.

CLI validation methodology

Proprietary debuggers abstract the raw HTTP transaction. Isolating edge routing rules requires direct CLI intervention. Simulating the exact request footprint of a social scraper reveals redirection chains, firewall blocks, and SPA hydration failures that platform tools obscure.

Use cURL to replicate the crawler request architecture. Modifying the User-Agent header forces the server to process the request exactly as it would for a social network bot.

curl -v -A "facebookexternalhit/1.1" https://example.com/target-path

The verbose flag outputs the complete response header sequence. You must verify the server returns a 200 OK status. 301 or 302 redirects indicate a routing anomaly that dilutes tag parsing authority. Next, evaluate the payload body. Pipe the output into a search utility to verify the presence of the critical meta tags within the raw HTML.

curl -s -A "Twitterbot" https://example.com/target-path | grep "twitter:"

An empty return indicates the tags rely on client-side execution. The server is outputting a bare application shell. The pre-rendering middleware or SSR implementation is failing to intercept the simulated User-Agent. This CLI methodology definitively isolates application rendering logic from network-level routing configurations.

Scraper cache mechanisms and overwrite protocols

Social platforms store scraped HTML payloads in distributed memory stores. This architecture minimizes redundant outbound requests to origin servers. The target URL acts as the exact database key for the cached object. Modifying the page content or updating the feature image does not automatically propagate to these platforms.

A standard cache TTL ranges from 24 hours to 7 days depending on the network. Stale HTML records result in outdated social previews traversing the feed. You must execute an explicit cache purge following any structural metadata update.

• Submit the exact canonical URL to the platform validation tool.
• Do not append arbitrary query strings to bypass the cache lock.
• Verify the updated timestamp aligns with the current server time.

Appending query parameters forces the crawler to treat the URL as a novel entity. This generates a fresh preview but fragments social engagement metrics. Likes, shares, and API click data tie directly to the specific URL string. Splitting the URL structure resets these counters to zero. Always execute the manual overwrite protocol through the diagnostic interfaces to preserve historical data consolidation.

CMS deployment configurations and fallback tag hierarchies

Manual metadata injection scales poorly across thousands of URLs. Enterprise environments map database fields directly to the document head during DOM generation. A centralized configuration guarantees parity between the canonical content and the injected metadata payload. This automated workflow relies on CMS interceptors to parse page-level variables and output valid property arrays before server-side caching mechanisms freeze the HTML structure.

WordPress plugin parameters

WordPress handles social metadata generation through specialized SEO extensions. These tools hook into the rendering sequence. Misconfigured global settings will overwrite post-specific data. This forces repetitive preview assets across disparate URLs. Precise parameter mapping ensures crawler systems parse the intended variables.

Activate the explicit toggle for metadata output within these interfaces. Disabling this core parameter strips all property tags from the generated source code. Conflicts arise when multiple extensions attempt to write to the document head simultaneously. Isolate deployment logic to a single plugin to prevent array duplication.

Shopify and wix logic protocols

Hosted architectures restrict direct database access. They expose theme-level APIs for tag injection. Shopify processes metadata through Liquid template modifications. Standard deployments utilize the social-meta-tags.liquid snippet. Wix governs metadata at the site level via its core dashboard settings.

• Navigate to the Shopify Online Store interface.
• Open Themes Customize Theme settings Social media.
• Assign the global fallback image variable.
• Access Wix Marketing SEO Social Share to dictate site-wide defaults.

Shopify liquid logic requires conditional rendering to evaluate variable presence. The server processes this logic before delivering the final payload to the client. The snippet below demonstrates standard conditional parsing.

{% if page_image %}
  <meta property="og:image" content="{{ page_image | image_url }}">
{% else %}
  <meta property="og:image" content="{{ settings.share_image | image_url }}">
{% endif %}

Fallback tag hierarchies

Content gaps are inevitable. Authors skip featured image uploads under tight publishing deadlines. A resilient CMS architecture implements a strict fallback tag hierarchy to intercept these omissions. Null values cause parsers to abort. Scrapers default to pulling the first arbitrary media node found within the DOM hierarchy when confronted with an empty content attribute.

Establishing a cascading logic chain prevents null outputs. The rendering engine evaluates conditions sequentially. If the primary condition returns empty, the system drops to the next available tier.

• Tier 1 intercepts explicitly defined social media images mapped via custom fields.
• Tier 2 queries the standard post-specific featured image database entry.
• Tier 3 targets category or parent taxonomy banner assets.
• Tier 4 injects the global site fallback variable.

The global fallback must remain a persistent asset on the server. Do not delete or rename the file designated as Tier 4. The URL string must remain static. Changing the file path breaks the fallback chain and triggers rendering failures across all URLs relying on the baseline configuration.
