How mobile ratio shifts of an image aspect cause CLS during slow loads

Analyzing how mobile ratio shifts of an image aspect cause CLS during slow loads requires a direct examination of the Core Web Vitals rendering pipeline. The layout shift score quantifies visual instability by calculating the impact fraction and the distance fraction of unstable elements moving across the viewport. The Performance API generates a layout shift entry whenever a visible node changes its starting position between consecutive rendered frames. These automated calculations directly measure the geometric displacement occurring before the user can fully interact with the document.

Network latency exposes these structural failures. Simulating a throttled 3G connection reveals the precise mechanics of visual instability on mobile devices.

Browsers parsing HTML without declared intrinsic dimensions cannot allocate correct screen geometry during the initial paint. The document renders rapidly with collapsed media containers. Data packets eventually cross the high-latency network and trigger the image decoding phase. The rendering engine must then recompute the spatial geometry to accommodate the newly discovered aspect ratio. Sudden content reflow follows immediately. Successive layout shift entries group together into shift clusters within a maximum window of five seconds. These clusters cascade down the mobile viewport as unresolved media files force text blocks and interactive targets out of their original coordinates.

Mechanics of content reflow and rendering dynamics

The browser rendering engine executes a strictly ordered pipeline to convert raw bytes into visible pixels. The HTML parser reads the document sequentially to construct the DOM tree. Concurrent CSS processing generates the CSSOM. The engine merges these data structures into a unified render tree. Layout calculation follows. This step assigns exact spatial coordinates and physical dimensions to every active node. The initial paint phase then commits these calculated geometries to the display.

Without intrinsic dimension declarations, the layout phase operates blindly. The engine processes unoptimized images as collapsed, zero-height containers. Text blocks and adjacent DOM nodes render immediately against these empty bounds. The engine proceeds with the initial paint. The viewport appears briefly stable.

The image payload downloads asynchronously in the background. Once the asset arrives and the decoding phase completes, the engine instantly identifies the true physical dimensions. A severe rendering block occurs. The browser must invalidate the current render tree and execute a structural re-layout. Content reflow aggressively displaces previously painted DOM nodes down the viewport.

Asynchronous download delays directly warp the relationship between visual stability and FCP. The browser executes FCP early because text nodes render quickly around the collapsed media containers. Extended network latency delays the asynchronous payload delivery, pushing the inevitable content reflow late into the page lifecycle. These late shifts generate severe layout shift entries well after FCP completes. The geometric displacement penalizes the user experience precisely when the document layout appears finalized.

The execution of this delayed reflow follows a deterministic sequence at the engine level:

• Node Invalidation: The browser flags the existing render tree geometries as obsolete upon decoding the image bytes.
• Geometry Recalculation: The CPU recomputes coordinates for the newly sized media node and all subsequent sibling nodes down the tree.
• Paint Invalidation: The engine discards previously painted pixels covering the affected screen region.
• Rasterization and Composite: The GPU draws the corrected layout, directly recording a layout shift entry via the Performance API.

Heavy layout recalculations consume main thread execution time. A single unoptimized asset forces the browser to recalculate the exact position of hundreds of nested DOM elements. This computational overhead scales with document complexity, creating simultaneous visual instability and input latency.

HTML specifications and the CSS Aspect-Ratio property

The foundation of stable rendering relies on explicit geometric declarations in the markup. Browsers parse the document sequentially. When the HTML parser encounters an image element without dimensional hints, it assumes a zero-pixel initial height. The layout block collapses. Once the payload completes downloading, the engine recalculates the entire render tree. This causes the severe geometric displacement discussed previously.

Modern HTML specifications mandate the inclusion of unitless width and height attributes directly on the img node. These integer values are not absolute pixel boundaries for the final display. They represent raw proportional coordinates.

<img src="hero-banner.jpg" width="1200" height="630" alt="Product view">

Modern rendering engines utilize these unitless values to compute an intrinsic aspect ratio immediately upon parsing the DOM node. The browser's internal user-agent stylesheet extracts the integers and applies an implicit aspect-ratio rule. This mathematical calculation executes synchronously. The browser maps the required bounding box before initiating the network request for the asset payload. Space is locked.

Hardcoded integer dimensions inherently conflict with fluid grid architectures. To maintain responsive scaling without sacrificing the reserved bounding box, CSS overrides are mandatory.

img {
  max-width: 100%;
  height: auto;
}

This pairing dictates the precise fluid behavior of the media node. The max-width directive restricts the element from overflowing its parent container, scaling it down proportionally based on viewport constraints. The height rule acts as the critical override. By setting the value to auto, the browser discards the rigid HTML height attribute. It instead relies on the previously calculated intrinsic ratio mapped by the user-agent stylesheet. The node scales perfectly on both axes. The layout remains rigid during the pending network request.

Native CSS Aspect-Ratio implementation

When operating on elements lacking physical HTML attributes, direct CSS manipulation is required. The aspect-ratio property provides explicit control over dimensional scaling at the CSSOM level. It accepts a strict mathematical ratio to define the geometric box.

.media-container {
  aspect-ratio: 16 / 9;
  width: 100%;
}

This property forces the layout engine to calculate the missing axis dimension as a direct function of the known axis. If the width resolves to 800 pixels based on the viewport, the engine immediately allocates 450 pixels of vertical space. It eliminates dependency on the asynchronous asset delivery. The layout parser treats the node as structurally complete.

The legacy Padding-Top trick

Before modern specifications integrated native aspect ratio mapping, engineers enforced layout stability through the padding-top trick. Vertical padding declared as a percentage resolves strictly relative to the computed width of the parent containing block. This CSS quirk allowed developers to forge artificial aspect ratios.

To enforce a standard 16:9 widescreen ratio, a structurally empty container required a specific vertical padding declaration of 56.25%.

• The layout engine computes the width of the parent DOM node.
• The padding-top percentage calculates the exact vertical pixel requirement based on that width.
• The actual media node requires absolute positioning to stretch across the newly forced void.

This architectural pattern is obsolete. It introduces unnecessary structural complexity. It mandates redundant wrapper div nodes, inflating the total DOM size and degrading rendering performance. Audits routinely expose this legacy code. It must be refactored.

Migrating from the padding hack to native HTML properties strips away unnecessary structural layers. You reduce node count. You simplify the stylesheet execution path. The rendering engine computes the exact same geometric bounds with significantly lower computational overhead.

Network loading conditions and latency impacts

Network latency ruthlessly exposes missing structural constraints. A high-speed fiber connection often masks layout vulnerabilities by delivering image payloads almost instantly. Mobile environments operate under stricter limitations. When routing through a 3G Connection, packet loss and restricted bandwidth drastically alter the resource fetching timeline. The rendering engine parses the HTML document, encounters an img node lacking dimensional data, and assigns a default zero-pixel bounding box.

Elevated TTFB makes this structural failure highly visible. If the server delays the initial response header, the browser rendering pipeline stalls. Once the HTML document finally streams to the client, the parser dispatches asynchronous requests for the image assets. Under Fast 3G mobile throttling, the time delta between the initial HTML parse and the completion of the image download stretches from milliseconds to multiple seconds. This specific time gap defines the layout shift region. The DOM parser continues processing the document tree, rendering text nodes and structural containers flush against the collapsed media void.

The delayed asynchronous download eventually completes. The browser decodes the file header to extract the native resolution. It immediately triggers a massive structural reflow. Every DOM node positioned below the asset is pushed down the viewport to accommodate the newly computed geometry. A prolonged network delay maximizes the probability that a user is actively interacting with the page when this violent reflow occurs.

Resource contention within the critical rendering path heavily amplifies latency impacts. The browser processes multiple asynchronous fetch requests concurrently based on internal heuristic prioritization. CSS stylesheets, JS bundles, and API payloads compete directly with image bytes for available TCP connections.

Constrained bandwidth triggers specific bottlenecks during the execution phase:

• Connection limits force media assets into a stalled network queue while critical JS bundles occupy the active ports.
• Bandwidth saturation slows byte transmission, forcing sequential rather than parallel decoding of the asset headers.
• Heavy CSSOM construction delays the paint cycle, extending the exact timeframe where the layout remains completely fluid and unpredictable.

You cannot control the network stability of the end user. You can control the geometric data supplied to the DOM parser. Defining intrinsic parameters decouples the layout stability from the payload delivery speed. The layout engine reserves the necessary spatial volume instantly during the initial parse. The network can take five milliseconds or five seconds to deliver the resource, but the surrounding container elements remain perfectly static.

Handling viewport breakpoints in responsive images

Responsive design environments break static intrinsic sizing logic. A single geometric declaration fails when an asset changes proportions across desktop and mobile views. The browser needs exact instructions to calculate the reserved layout space before the CSSOM fully builds and applies viewport-specific rules. You must map intrinsic size directly to dynamic viewport conditions.

Implementing srcset and sizes

Standard HTML requires the img element to utilize the srcset attribute for defining available resource files and the sizes attribute for declaring the intended display width. The DOM parser reads the sizes attribute immediately upon discovering the node. It evaluates the current dynamic viewport width and selects the optimal file from the srcset list based on that exact moment in the parsing cycle.

Missing or inaccurate sizes attributes force the browser to guess the intended display width. Guessing leads to incorrect asset selection. Downloading an oversized image wastes bandwidth, while downloading an undersized image forces a late-stage DOM recalculation when the CSS scales the asset up.

Pixel density complicates this initial calculation. High-density screens request larger payloads to maintain visual sharpness. Modern implementations handle varying pixel density using width descriptors (w) combined with precise sizes logic rather than legacy density multipliers (1x, 2x).

The layout impact differs heavily depending on the chosen descriptor pattern.

Art direction and the picture element

Changing the aspect ratio at different breakpoints is the most aggressive trigger for DOM recalculation. A hero banner might render at a 16:9 ratio on desktop interfaces but switch to a 1:1 square on mobile viewports. Supplying a single set of width and height attributes in this scenario guarantees a severe layout collapse. The browser expects a rectangle, reserves space for a rectangle, and then violently snaps the geometry to a square once the CSS media query overrides the dimensions.

The picture element resolves this architectural flaw. It isolates the rendering logic into distinct source nodes mapped to specific media conditions.

<picture>
  <source media="(min-width: 1024px)" srcset="hero-desktop.jpg" width="1200" height="675">
  <source media="(min-width: 768px)" srcset="hero-tablet.jpg" width="800" height="600">
  <img src="hero-mobile.jpg" width="400" height="400" alt="Hero banner">
</picture>

The DOM parser processes the picture element top-down. It evaluates the media attribute against the active viewport breakpoint. Upon finding the first matching condition, it extracts the width and height attributes specific to that source tag. The layout engine instantly reserves the exact spatial volume for that specific aspect ratio. All subsequent source nodes are ignored.

The fallback img tag executes only if no media conditions match. It remains structurally necessary as it houses the actual DOM node that the browser renders; the picture and source tags merely feed it data.

Synchronizing CSS media queries with HTML dimensions

Mismatched breakpoints between your HTML source nodes and your CSS stylesheets guarantee visual instability. If your CSS layout grid adjusts at 768px but your HTML source tag triggers at 800px, you create a 32-pixel dead zone. Within this specific viewport range, the CSSOM dictates one layout structure while the DOM parser reserves space for another.

Strict synchronization prevents these conflict zones.

• Align all pixel values precisely. The media attribute in the HTML source tag must perfectly mirror the CSS media query controlling the parent container.
• Define aspect-ratio shifts explicitly at the exact CSS breakpoint where the grid column count changes.
• Hardcode width and height on every single source tag. Never rely solely on the fallback img dimensions when executing art direction.
• Avoid using em or rem units in HTML media attributes if the CSS relies on px values for layout shifts, as user-agent font scaling will desynchronize the breakpoints.

Binding exact intrinsic dimensions to every viewport permutation locks the rendering area. The browser never needs to recalculate the page geometry because the geometric truth is established the millisecond the HTML node is parsed.

Critical rendering path and image prioritization

The browser parser executes a strict hierarchy when evaluating the DOM tree. Above-the-fold structural assets must bypass standard queuing protocols. If a hero image waits in the general network fetch queue, the primary viewport rendering cycle stalls. You must provide explicit delivery directives to elevate these critical nodes within the execution pipeline.

Resource hints and fetch modification

Default browser heuristics often misjudge the visual importance of DOM nodes during the initial parse. Standard image tags compete with CSS files and render-blocking scripts for bandwidth. To resolve this bottleneck, you must forcefully manipulate the asset fetch sequence.

Apply the fetchpriority attribute directly to the primary LCP image node. A fetchpriority="high" declaration signals the browser to upgrade the request priority before layout calculation finishes. This bypasses the standard queuing delay.

Network latency against cross-origin servers requires separate mitigation. When hosting critical images on an external CDN, TLS negotiation and DNS resolution block the file transfer. Implement a preconnect directive in the document head to resolve these handshakes asynchronously.

Preload directives serve a highly specific function for late-discovered assets. Do not use preload for standard HTML image tags. Reserve link rel="preload" as="image" strictly for critical background images defined in the CSSOM or hero images injected via JavaScript, ensuring they enter the fetch queue during the initial HTML parse phase.

Architectural conflicts with lazy loading

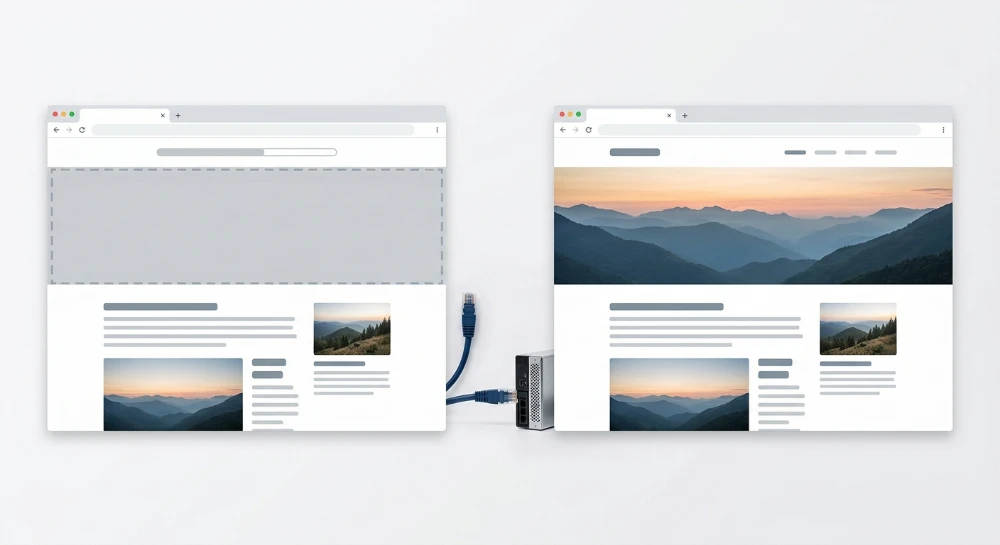

Native lazy loading fundamentally alters the resource fetching timeline. Applying loading="lazy" to above-the-fold images creates a severe architectural conflict. It intentionally suppresses the image request during the initial render phase.

The browser must completely build the DOM and CSSOM, execute layout calculations, and trigger the internal intersection observer before it initiates the fetch for a lazy-loaded image. This forced sequential processing destroys LCP metrics. The render pipeline waits idle.

This interception mechanism directly exacerbates visual instability. When a structural hero image request is deferred, the container remains empty longer. If intrinsic dimensions are slightly misconfigured across viewports, the delayed byte decoding triggers a late layout shift. The later a node populates its final pixel data, the higher the risk to the CLS score.

The sequence of failure for lazy-loaded structural images operates predictably.

• The HTML parser encounters the image node and logs the lazy loading directive.
• Network request execution is actively blocked.
• The browser finishes layout calculation to determine viewport intersection.
• Intersection is confirmed, and the request finally enters the network queue.
• The image decodes late in the lifecycle, triggering severe content reflow if dimension locks fail.

Never apply lazy loading algorithms to structural images visible within the initial viewport. The loading attribute must remain absent or explicitly set to eager for these specific nodes. Precision in targeting ensures the critical rendering path remains unobstructed and layout geometries solidify instantly upon paint.

Implementation of placeholders and CSS stabilization

When network latency stalls asset delivery, the DOM must hold exact geometric boundaries. Structural collapses occur when the browser attempts layout calculation without pixel data. You force the layout engine to respect container boundaries by deploying hard CSS constraints and inline placeholders.

A wrapper element must dictate the spatial footprint independently of its child nodes. Relying solely on the image node for layout logic guarantees a reflow if the fetch mechanism stalls.

CSS structural constraints and grid allocations

Hardcode spatial reservations using structural CSS patterns. Fixed size wrappers isolate the rendering area before the image bytes even enter the network queue. You must establish a rigid perimeter.

CSS Grid environments offer precise architectural control. By assigning an image container to a predefined grid track, the layout engine reserves the exact coordinate space during the initial CSSOM parse. The cell dimensions remain locked regardless of the child node load state.

• Apply min-height declarations to image containers to guarantee vertical axis stability on mobile viewports.
• Use aspect-ratio configurations on wrappers to lock proportional dimensions for dynamic width columns.
• Execute CSS grid-layout allocations to define absolute container tracks that ignore child element reflow triggers.

.hero-grid {
  display: grid;
  grid-template-columns: 1fr;
  grid-template-rows: minmax(300px, auto);
}
.hero-container {
  grid-row: 1 / 2;
  grid-column: 1 / -1;
  min-height: 300px;
}

Locking rendering areas with Object-Fit

Once the wrapper defines the rigid box, the delayed image bytes must populate the space without distorting the locked dimensions. The CSS object-fit property dictates exactly how decoded pixels map to the container footprint.

Applying object-fit to the image node explicitly instructs the browser to decouple the intrinsic image size from the parent container size.

• The object-cover directive scales the asset to fill the wrapper completely. It clips excess edge data while maintaining the exact aspect ratio.
• The object-contain directive scales the image until it hits a bounding edge. The full asset remains visible inside the wrapper, generating letterboxing if aspect ratios mismatch.

Both directives ensure the parent element never resizes based on the intrinsic dimensions of the incoming payload. The spatial reservation holds firm. The layout engine paints the image within the established boundaries without triggering a reflow cascade.

DOM stabilization techniques

Empty wrappers stabilize the layout but present a hostile user experience during slow network fetches. The perceptual load time degrades significantly. You must inject lightweight visual placeholders directly into the initial HTML response to bridge the latency gap.

Skeleton screens map the structural geometry using flat background colors or low-cost CSS animations. They signal to the user that content is actively parsing, holding the exact layout shift footprint in place.

The blurDataURL payload methodology takes this stabilization further. You embed a micro-sized Base64 representation of the image directly in the DOM. This inline payload requires zero external network requests and decodes instantly.

The browser paints a heavily blurred, mathematically identical layout block while the primary network request fetches the high-resolution asset. When the full bytes arrive, the image transitions smoothly without altering a single pixel of the surrounding geometry.

Choose the placeholder pattern based on your TTFB constraints and HTML size limits. Heavily optimized environments benefit immensely from inline Base64 payloads, provided the strings remain strictly compressed to prevent DOM bloat. Skeleton screens remain the standard fallback for heavily dynamic content where pre-generating Base64 strings taxes the server API excessively.

Diagnostics, synthetic testing, and RUM tooling

Hardware latency masks visual instability on local developer setups. Gigabit connections decode image payloads fast enough to hide structural flaws in the DOM. You must force artificial constraints to expose missing dimension declarations.

Open Chrome DevTools. Navigate directly to the Network tab. Apply a throttled connection profile. The default Fast 3G preset introduces enough artificial delay to reveal layout reflows triggered by late-arriving image bytes. Switch to the Performance panel and initiate a page load profiling session with the throttled network active.

Locate the Experience row in the resulting trace. The Layout Shifts track displays red bars corresponding to specific shift events during the page lifecycle. Click a specific shift block. The Summary tab immediately exposes the layout shift culprits. DevTools highlights the exact DOM node in the viewport and provides the CSS selector causing the displacement. You see the starting coordinates, the ending coordinates, and the exact pixel footprint of the reflow.

Executing synthetic validation

Local throttling validates individual fixes. Standardized synthetic testing verifies those fixes against baseline metrics.

WebPageTest provides deep visualization of the rendering pipeline under stress. Configure the test environment for a mid-tier mobile device on a constrained connection profile. The filmstrip view synchronizes the visual rendering sequence directly with the resource waterfall.

• Select a custom network profile to emulate packet loss and elevated latency.
• Examine the visual progress frames alongside the active resource waterfall.
• Identify the exact millisecond an unoptimized image resolves and displaces adjacent structural elements.

Google PageSpeed Insights executes headless Lighthouse audits to generate synthetic lab data. The Lighthouse score isolates specific rendering bottlenecks. Review the diagnostic section targeting structural shifts. This report isolates specific image nodes and lists their exact mathematical contribution to the total performance penalty.

Extracting field data

Lab tests predict rendering behavior. RUM validates actual human interaction on varied mobile networks.

CrUX aggregates field data from live sessions. You extract origin-level CLS directly from the top interface of Google PageSpeed Insights. This section separates mobile and desktop field data, showing the exact percentage of users experiencing failing layout stability.

Scale this extraction using the CrUX API. Direct API calls return the density distribution of shift scores across your entire domain structure. Enterprise engineering teams pull the raw CrUX dataset from BigQuery. This allows complex SQL cross-referencing between specific device parameters, connection types, and regional latency impacts.

Correlate your local DevTools discoveries with your CrUX field data. When the API reports a surge in poor experiences on mobile, mirror those exact device conditions in your local Performance panel. Pinpoint the culprit, apply the structural CSS constraints, and validate the stabilized rendering path in Lighthouse.
